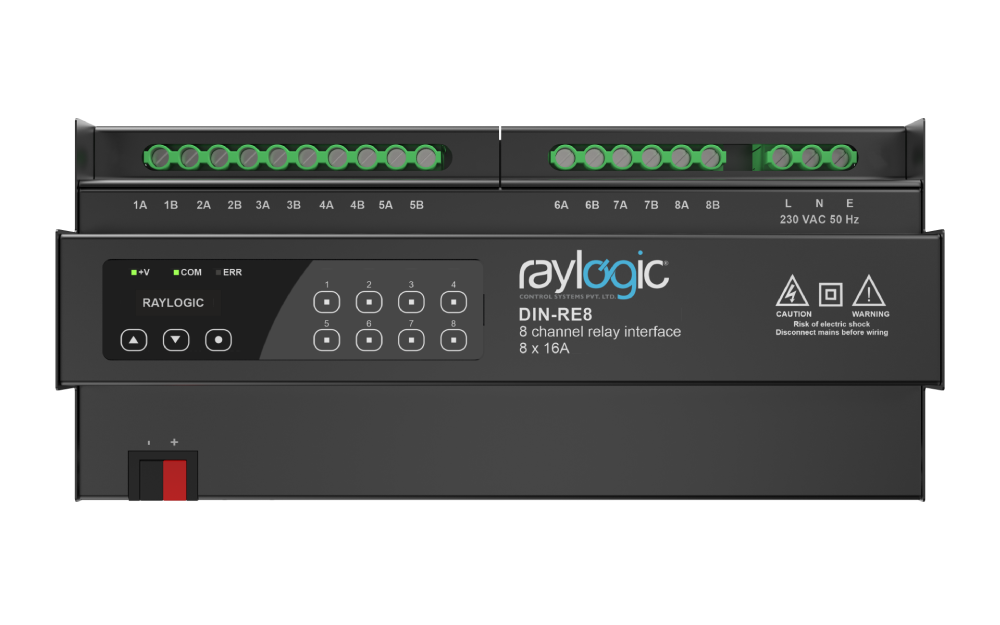

DIN-RE8 DIN-RE8

DIN-RE8

DIN Rail mounted 8 channel relay interface
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • Switching on/off for LED / incandescent / fluorescent lighting loads up to 16A
  • Curtain control for up to 4 pairs of curtains
  • Direct channel on/off control
  • Timed channel control
  • Timed control for curtains
  • 16 groups or areas
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts

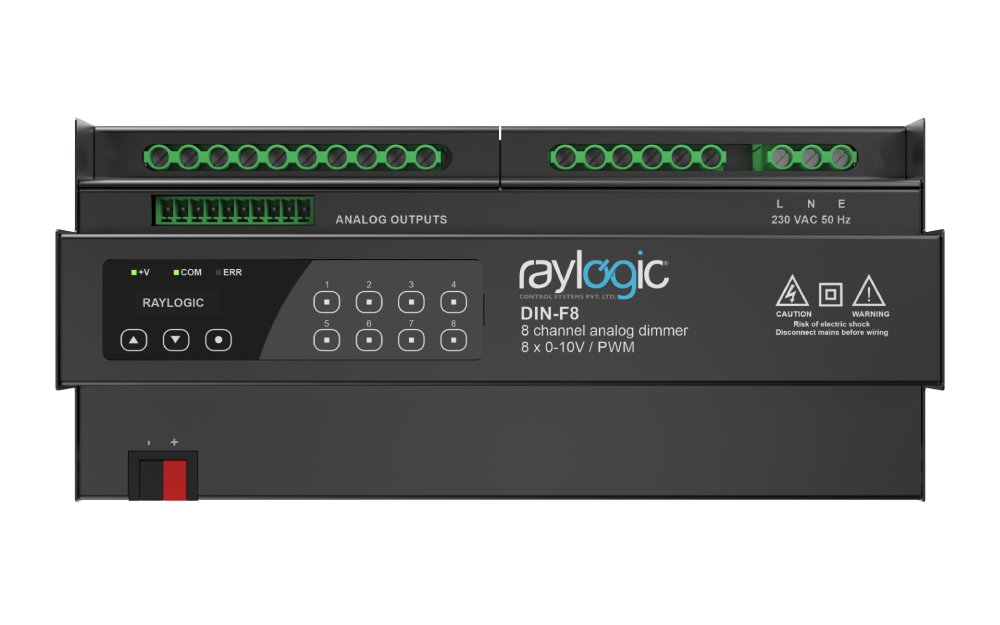

DIN-F8 DIN-F8

DIN-F8

DIN Rail mounted 8 channel analog 0-10V dimming system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 8 channels of analog 0-10V DC / PWM control
  • Switching on/off for LED / incandescent / fluorescent lighting loads up to 16A
  • Direct channel intensity and fade time control
  • Scene fade time programmable between 0 - 250 seconds
  • 16 groups or areas
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • Automatic frequency tracking and synchronization
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-H81 DIN-H81

DIN-H81

DIN Rail mounted 8 channel dimming system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 8 channels of leading-edge dimming controls
  • Max load 1.25A (@ 300W per channel)
  • Suitable for LED lamps with leading-edge dimmable drivers
Maximum number of LED drivers: Driver rating 5W - 21W x 10
Driver rating 25W - 50W x 5
LED strip drivers suitable for phase-cut use
Maximum number of LED drivers: Driver rating 50W - 250W x 1
  • Direct channel intensity and fade time control
  • Scene fade time programmable between 0 - 250 seconds
  • 16 groups or areas
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • Automatic frequency tracking and synchronization
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-HU4 DIN-HU4

DIN-HU4

DIN Rail mounted 4 channel universal dimming system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 4 channels of universal dimming controls (leading-edge/trailing-edge selectable)
  • RC mode: 300W per channel
  • L mode: 80W per channel
  • Suitable for LED lamps with leading-edge/trailing-edge dimmable drivers
    • Maximum number of LED drivers: Driver rating 5W - 21W x 10
    Driver rating 25W - 50W x 5
  • Direct channel intensity and fade time control
  • Scene fade time programmable between 0 - 250 seconds
  • 16 groups or areas
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • Automatic frequency tracking and synchronization
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
DIN-FN4 DIN-FN4

DIN-FN4

DIN Rail mounted 4 channel fan control system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • Max load 0.4A per channel (100W)
  • Suitable for regular ceiling fans
  • 4 channels of hum-free ceiling fan control
  • Direct fan speed control with 5 speeds
  • 16 groups or areas
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • Thermal overload cut-off
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts

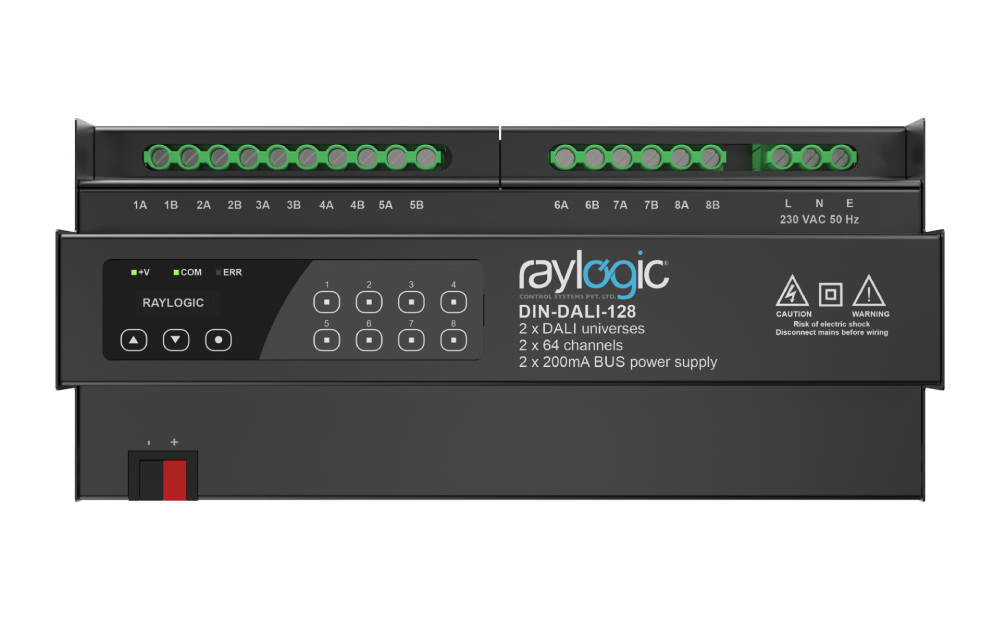

DIN-DALI-128 DIN-DALI-128

DIN-DALI-64

DIN Rail mounted 64 channel DALI control system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 1 DALI universe of up to 64 channels
  • IEC 62386 DALI / DALI-2
  • In-built power supply
  • In-built DALI power supply 200mA
  • Power supply for up to 2 Raylogic keypads
  • Direct RAYNET-DALI conversion
  • Direct interface with Raylogic ControlSoft for ease of programming
  • Support for DALI / DALI-2 including DT-6/DT-8 drivers
  • RAYNET mapping to DALI channel intensity
  • RAYNET mapping for areas to DALI groups
  • RAYNET mapping for scenes, for up to 16 DALI scenes
  • RAYNET mapping to DALI colour temperature / colour control
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • External fuses and MCBs required in panel for protection
  • Mild steel, powder-coated enclosure
  • RAYNET -RS-485 and Raylogic ControlSoft programming
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts

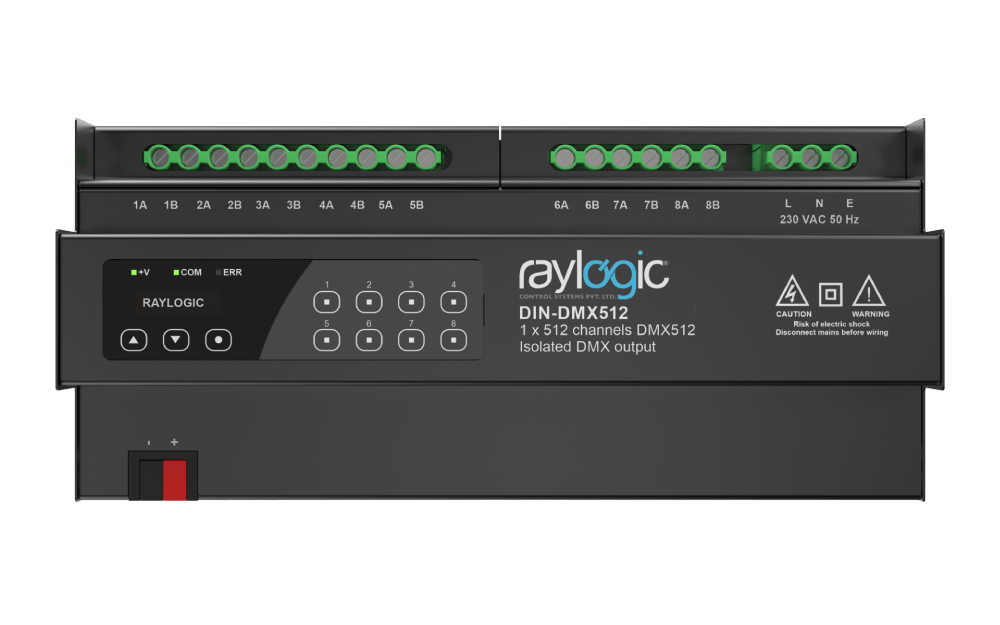

DIN-DMX512 DIN-DMX512

DIN-DMX512

DIN Rail mounted 512 channel DMX control system
  • Width: 210 mm
  • Height: 100 mm
  • Depth: 80 mm
  • 1 universe of up to 512 DMX channels. Fully opto-isolated output
  • 512 channels of USITT [1990] DMX512 control
  • Webserver for DMX512 fixture, scenes and sequence setup
  • Direct interface with Raylogic ControlSoft for ease of programming
  • Direct RAYNET-DMX512 conversion
  • RAYNET mapping to DMX512 channel intensity
  • RAYNET mapping for areas to DMX512 groups
  • RAYNET mapping for scenes to DMX512 scenes and sequences
  • Internal non-volatile memory for 60 scenes, schedules, timers and last state storage
  • In-built power supply
  • Power supply for up to 2 Raylogic keypads
  • RAYNET RS-485 protocol and command set
  • Third-party control via RS-485
  • IP controls via in-built ethernet port
  • Works directly with the GO app; no separate controller required
  • Easy third-party integration and feedback
  • Optional KNX integration for control via KNX bus. Uses ETS to configure and setup
  • In-built web server for configuration and setup
  • RAYNET -RS-485 and Raylogic ControlSoft programming
  • iOS and Android control via the GO app
  • iOS and Android control via the Touchmate app and Raylogic controller
  • Direct control via Raylogic keypads on RAYNET bus
  • Optional in-built switch control interface allowing direct control via push button switches
  • KNX bus integration available
  • In-built channel controls via touch switches on top panel
  • Alexa GO Voice Skill
  • Google Home GO Voice Action
  • IFTTT GO by Raylogic Service
  • Siri Shortcuts
