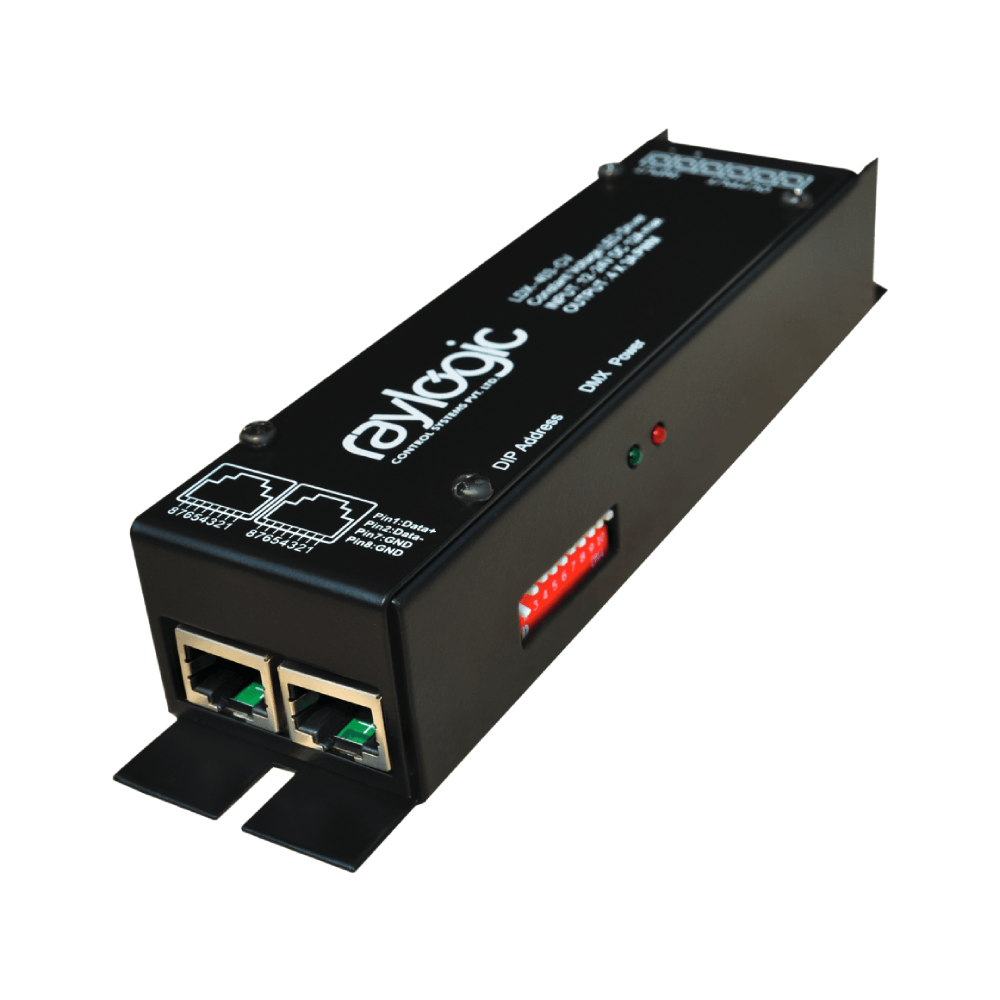

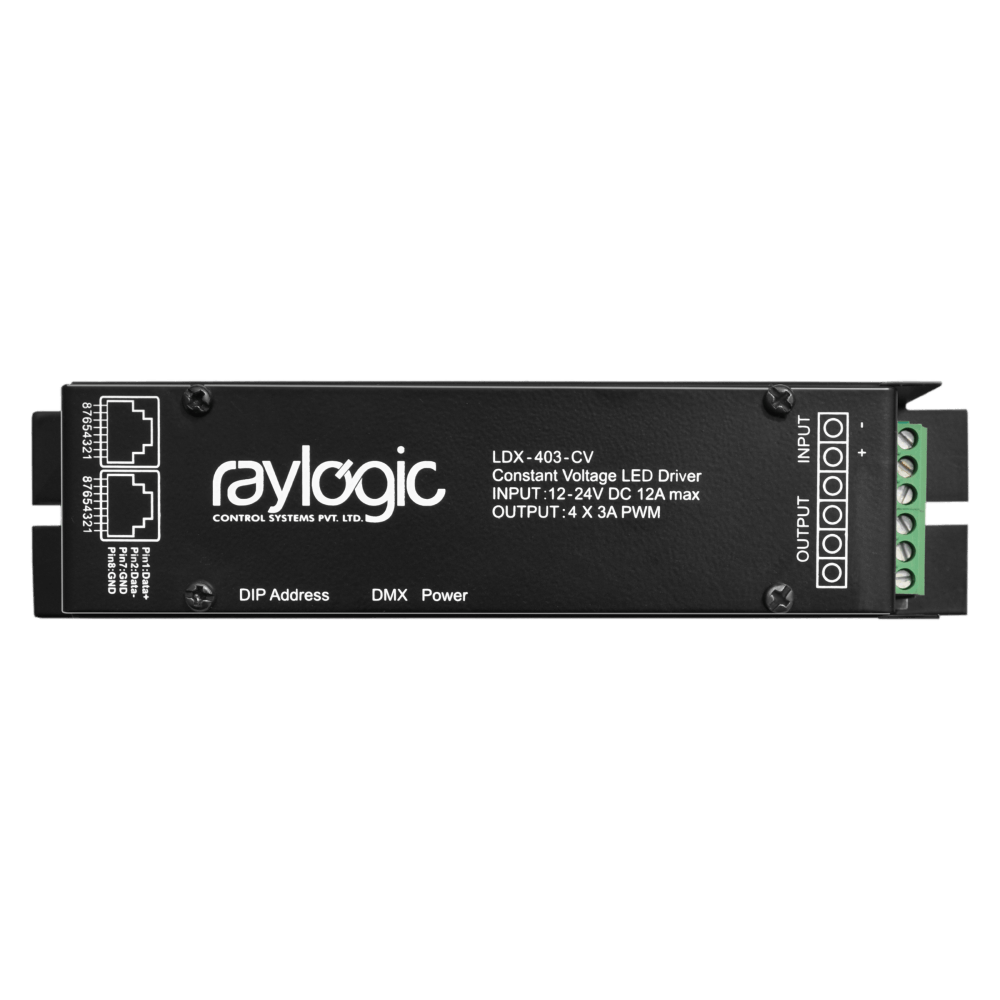

LDX-403-CV
4 channel PWM controller for constant voltage LED strips.
Requires an external power supply.
- Width: 160 mm
- Height: 100 mm
- Depth: 80 mm
- 4 channels of PWM controls x 3A ( 12 VDC 36W / 24V 72W per channel )
- Smooth dimming for LED strips.
- Smooth dimming for LED strips.
- LDX-403-S Single channel version for 10A load rating. ( 12V 100W / 24V 200W All 4 channels to be paralleled )
- Direct channel intensity & fade time control.
- Scene fade time programmable between 0 - 250 seconds.
- 16 groups or areas.
- Internal non volatile memory for 60 scenes.
- RAYNET RS-485 protocol & command set.
- Third party control via RS-485.
- DMX-512 protocol selection using DIP switch 10.
- DMX OK led indicator for valid DMX signal.
- External Fuses required in panel for protection.
- iOS and Android phone control via Touchmate app and Raylogic control system.
- iOS & Android control via the GO app and GRB hardware.
- Control via Raylogic's Keypads direct on RAYNET BUS.
- Third party switch control via external processor / Raylogic SCI interface.
- DMX-512 control via DMX control desks / software & hardware.
- Voice control requires the GO app & GRB hardware along with this product.
- Alexa GO Voice Skill
- Google Home GO Voice Action
- IFTTT GO by Raylogic Service

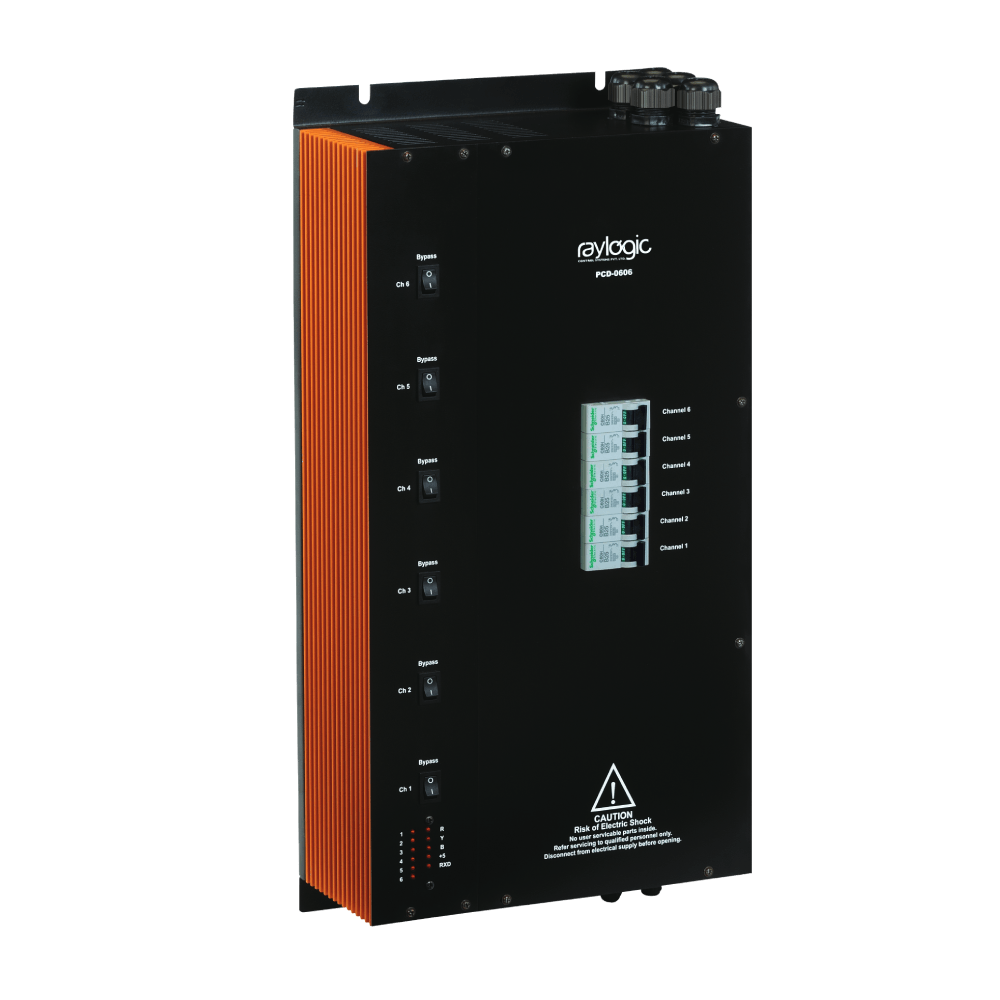

PCD-0605/PCD-0610
Wall mounted 6 channel high capacity dimming system.
Inbuilt power supply.
Power supply for up to 2 Raylogic Keypads.
- Width: 300 mm
- Height: 600 mm
- Depth: 100 mm
- 6 channels of leading edge dimming controls.
- Max load 5A ( PCD-0605 ) / 10A ( PCD-0610 )
- Suitable for LED lamps with leading edge dimmable drivers
- Max load 5A ( PCD-1205 ) / 10A ( PCD-1210 )
-
- Suitable for LED lamps with leading edge dimmable drivers
- Maximum number of LED drivers per channel ( PCD-1205)
- Driver rating <= 21W x 25
- Driver rating 21-50W x 12
-
- LED Strip drivers suitable for Phase cut use.
- Maximum number of LED drivers per channel ( PCD-1205)
- Driver rating <= 150W x 4
- Driver rating 150W-300w x 2
- Direct channel intensity & fade time control.
- Scene fade time programmable between 0 - 250 seconds.
- 16 groups or areas.
- Internal non volatile memory for 60 scenes.
- RAYNET RS-485 protocol & command set.
- Third party control via RS-485.
- Inbuilt MCBs ( Miniateure Circuit Breakers )
- Mild steel,powder coated panel construction
- iOS and Android phone control via Touchmate app and Raylogic control system.
- iOS & Android control via the GO app and GRB hardware.
- Control via Raylogic's Keypads direct on RAYNET BUS.
- Third party switch control via external processor / Raylogic SCI interface.
- Voice control / IFTTT via GO app and GRB hardware.
- Alexa GO Voice Skill
- Google Home GO Voice Action
- IFTTT GO by Raylogic Service
